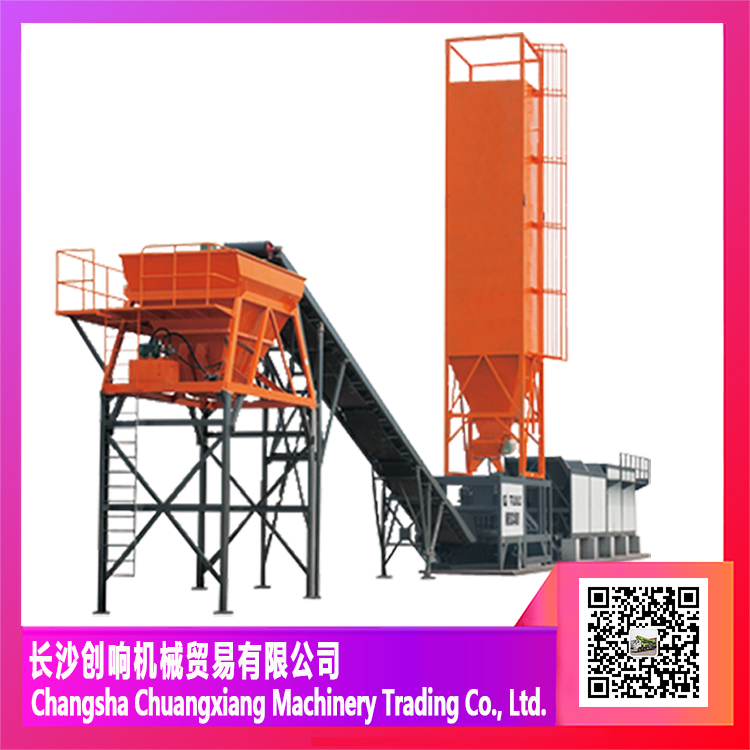

水穩站
| 水穩攪拌站參數 | ||||||
| 型號 |
儲料倉
數量
|
稱料斗容量
(立方米)
|
儲存斗容量
(立方米)
|
生產率 | 配料精度 |
可配骨料
種數
|
| PLD800 | 2 | 0.8 | 2*3.2 | 48m3/h | ±2% | 2 |
| 3 | 0.8 | 3*3.2 | 48m3/h | ±2% | 3 | |
| PLD1200 | 2 | 1.2 | 2*7.3 | 60m3/h | ±2% | 2 |
| 3 | 1.2 | 3*7.3 | 60m3/h | ±2% | 3 | |
| 4 | 1.2 | 4*6.6 | 60m3/h | ±2% | 4 | |
| PLS-A1200 | 3 | 1.2 | 3*7.3 | 60m3/h | ±2% | 3 |
| 4 | 1.2 | 4*6.6 | 60m3/h | ±2% | 4 | |
| PLS-B1200 | 3 | 1.2 | 3*7.3 | 60m3/h | ±2% | 3 |
| 4 | 1.2 | 4*6.6 | 60m3/h | ±2% | 4 | |
| PLD1600 | 2 | 1.6 | 2*6.38 | 80m3/h | ±2% | 2 |
| 3 | 1.6 | 3*8.38 | 80m3/h | ±2% | 3 | |
| 4 | 1.6 | 4*10 | 80m3/h | ±2% | 4 | |
| PLS-A1600 | 3 | 1.6 | 3*3.38 | 80m3/h | ±2% | 3 |
| 4 | 1.6 | 4*10 | 80m3/h | ±2% | 4 | |
| PLS-B1600 | 3 | 1.6 | 3*8.38 | 80m3/h | ±2% | 3 |
| 4 | 1.6 | 4*10 | 80m3/h | ±2% | 4 | |
| PLD2400 | 2 | 2.4 | 2*10 | 120m3/h | ±2% | 2 |
| 3 | 2.4 | 3*8.38 | 120m3/h | ±2% | 3 | |
| 4 | 2.4 | 4*10.8 | 120m3/h | ±2% | 4 | |
| PLS-A2400 | 3 | 2.4 | 3*8.38 | 120m3/h | ±2% | 3 |
| 4 | 2.4 | 4*10.8 | 120m3/h | ±2% | 4 | |
| PLS-B2400 | 3 | 2.4 | 3*8.38 | 120m3/h | ±2% | 3 |
| 4 | 2.4 | 4*10.8 | 120m3/h | ±2% | 4 | |
| PLD3200 | 4 | 3.2 | 4*15.6 | 160m3/h | ±2% | 4 |
| PLD4800 | 4 | 25 | 4*25 | 280m3/h | ±2% | 4 |

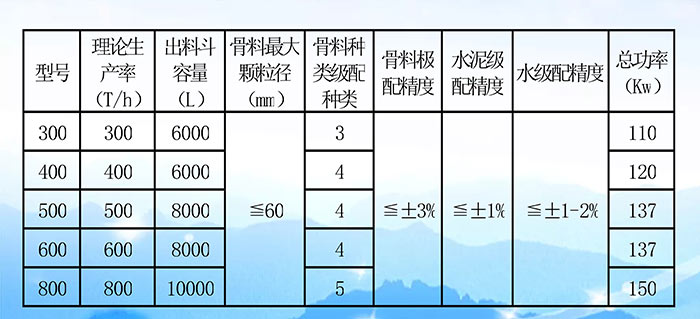

| 型號 |
理論生產率 （T/h） |
出料斗容量（L） |
骨料最大顆粒徑 （mm） |
骨料種類級配種類 | 骨料極配精度 | 水泥級配精度 |
| 300 | 300 | 6000 | ≤60 | 3 | ≤ ±3% | ≤ ±1% |
| 400 | 400 | 6000 | 4 | |||
| 500 | 500 | 8000 | 4 | |||
| 600 | 600 | 8000 | 4 | |||
| 800 | 800 | 10000 |
5 |
